Automating workflows with GitHub Actions

GitHub Actions is a great tool for automating workflows directly within your GitHub repositories. It allows you to create customized workflows to handle various tasks, such as building, testing, and deploying your applications. This guide will cover several examples to demonstrate how to effectively use GitHub Actions for different scenarios, including automating workflows, integrating CI/CD pipelines, and performing security checks.

Setting up GitHub Actions

To get started with GitHub Actions, you need to create a workflow file in your repository. This file, typically located in the .github/workflows directory, is defined using YAML (YAML Ain't Markup Language), a human-readable data serialization format.

Basic workflow setup

Create a file named ci.yml in the .github/workflows directory with the following content:

name: CI

on:
  push:
    branches:
      - main
  pull_request:
    branches:
      - main

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v2

      - name: Set up Node.js
        uses: actions/setup-node@v2
        with:
          node-version: '14'

      - name: Install dependencies
        run: npm install

      - name: Run tests
        run: npm test

Breakdown of the workflow

• name: Specifies the name of the workflow.
• on: Defines the events that trigger the workflow. Here, it runs on pushes or pull requests to the main branch.
• jobs: Defines a series of tasks to be executed.
  • runs-on: Specifies the type of runner to use (in this case, ubuntu-latest).
  • steps: Lists the actions performed in each job, such as checking out the repository, setting up Node.js, installing dependencies, and running tests.

Automating workflows with GitHub Actions

GitHub Actions can automate various repetitive tasks, such as assigning reviewers or adding labels based on specific conditions.

Automating PR management

To automate tasks when a pull request is opened, you can create a new workflow file, pr-automation.yml:

name: PR Automation

on:
  pull_request:
    types: [opened, edited]

jobs:
  label:
    runs-on: ubuntu-latest
    steps:
      - name: Check PR title
        run: |
          if [[ "${{ github.event.pull_request.title }}" == *"WIP"* ]]; then
            echo "This PR is a work in progress."
          else
            echo "Labeling PR as ready for review."
            gh pr edit ${{ github.event.pull_request.number }} --add-label "ready for review"
          fi

• This workflow triggers when a pull request is opened or edited.
• It checks the title of the pull request. If it contains "WIP" (Work In Progress), it outputs a message. Otherwise, it labels the PR as "ready for review."

CI/CD pipelines with GitHub Actions

GitHub Actions is excellent for creating CI/CD pipelines that automate the process of building, testing, and deploying applications.

CI/CD pipeline for deployment

Here's how to set up a CI/CD pipeline that deploys your application when changes are pushed to the main branch:

name: CI/CD Pipeline

on:
  push:
    branches:
      - main

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v2

      - name: Build the application
        run: npm run build

  deploy:
    runs-on: ubuntu-latest
    needs: build
    steps:
      - name: Deploy to production
        run: |
          echo "Deploying to production server..."
          # Add your deployment commands here

Breakdown of the CI/CD pipeline

• The workflow triggers on pushes to the main branch.
• The build job compiles the application.
• The deploy job runs only after the build job is complete, ensuring the application is built before deployment.

GitHub Actions for deployment

You can deploy your application to various environments, including cloud providers or container registries, using GitHub Actions.

Example: Deploying to AWS S3

To deploy your static site to AWS S3, you can use the following workflow:

name: Deploy to S3

on:
  push:
    branches:
      - main

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v2

      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v1
        with:
          aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID }}
          aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
          aws-region: us-east-1

      - name: Sync files to S3
        run: aws s3 sync ./build s3://my-bucket-name --delete

• The workflow runs on pushes to the main branch.
• It checks out the repository and configures AWS credentials using secrets stored in GitHub.
• The aws s3 sync command uploads files to your S3 bucket.

GitHub Actions integration tests

Integration tests ensure that different components of your application work together as expected.

Running integration tests

You can add an integration testing step to your CI workflow:

jobs:
  integration:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v2

      - name: Run integration tests
        run: npm run test:integration

Monitoring GitHub repositories

Monitoring your GitHub repositories for specific events or conditions can help maintain code quality and prevent issues.

Monitoring issues

You can set up a workflow to notify your team when issues are opened:

name: Monitor Issues

on:
  issues:
    types: [opened]

jobs:
  notify:
    runs-on: ubuntu-latest
    steps:
      - name: Notify team on Slack
        run: |
          curl -X POST -H 'Content-type: application/json' --data '{"text":"New issue opened: ${{ github.event.issue.title }}"}' ${{ secrets.SLACK_WEBHOOK_URL }}

Reusable workflows in GitHub Actions

Reusable workflows allow you to define common workflows and call them from other workflow files to improve maintainability and reduce redundancy.

Defining a reusable workflow

Create a reusable workflow in .github/workflows/reusable-ci.yml:

name: Reusable CI

on:
  workflow_call:

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v2

      - name: Build application
        run: npm run build

Calling the reusable workflow

You can call this reusable workflow in another workflow file:

name: CI Pipeline

on:
  push:
    branches:
      - main

jobs:
  call-reusable:
    uses: ./.github/workflows/reusable-ci.yml

Scheduling tasks with GitHub Actions

You can schedule workflows to run at specific intervals using the schedule event, which utilizes cron syntax.

Example: Daily build job

name: Scheduled Build

on:
  schedule:
    - cron: '0 0 * * *' # Runs daily at midnight

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v2

      - name: Build application
        run: npm run build

Security checks with GitHub Actions

Integrating security checks into your workflows can help identify vulnerabilities in your code.

Example: Running security scans

You can integrate a security scanning tool like [Snyk](https://snyk.io/) into your workflow:

name: Security Scan

on:
  push:
    branches:
      - main

jobs:
  security:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v2

      - name: Install Snyk
        run: npm install -g snyk

      - name: Run Snyk to check for vulnerabilities
        run: snyk test

Using GitHub Actions to leave a comment

To leave a comment on a pull request using GitHub Actions, you can create a workflow that utilizes the GitHub API to post comments when certain conditions are met, such as when a PR is opened or updated.

You can use the following YAML configuration to define a workflow that comments on a pull request:

name: Comment on PR

on:
  pull_request:
    types: [opened, synchronized]

jobs:
  comment:
    runs-on: ubuntu-latest
    steps:
      - name: Leave a comment
        uses: actions/github-script@v5
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          script: |
            github.rest.issues.createComment({
              issue_number: context.issue.number,
              owner: context.repo.owner,
              repo: context.repo.name,
              body: 'Thank you for your pull request! We will review it soon.'
            })

• Triggers: This workflow triggers on opened or synchronized (updated) pull request events.
• Action: It uses actions/github-script, a pre-built action that allows you to run JavaScript directly in your workflow, to post a comment to the pull request.

How Graphite Automations simplifies that process

Using Graphite Automations, the process to automate actions such as leaving comments is simple and does not require you to write specific GitHub Actions workflows for each type of automation. Graphite allows you to set up rules that can automatically leave comments based on more sophisticated triggers and conditions defined through its UI.

Steps to Use Graphite Automations to Leave Comments:

1. Log into Graphite:

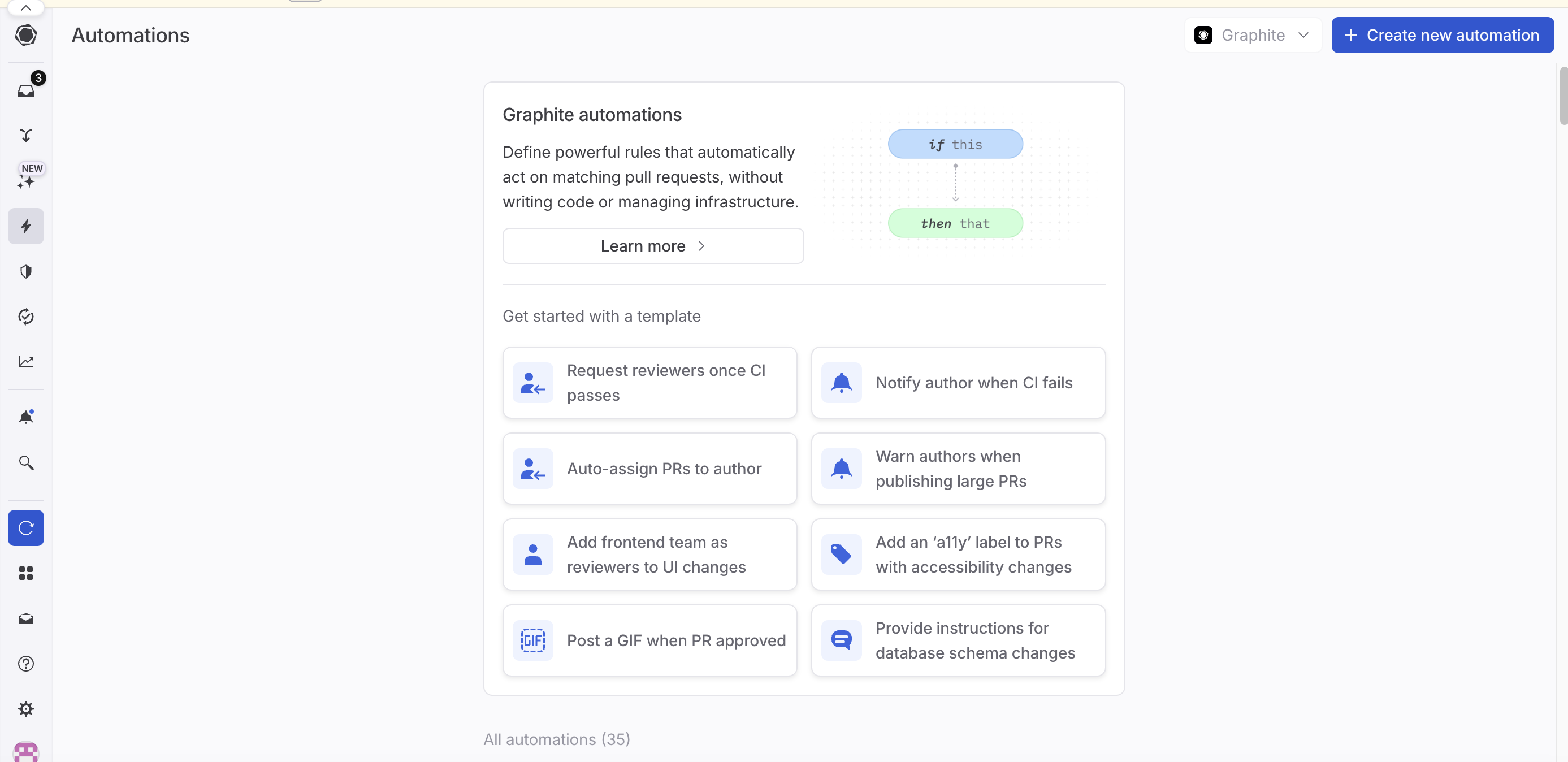

   • Access the Graphite web app and navigate to the Automations section.

2. Create an Automation Rule:

   • Choose the type of pull request event you want to trigger on, like when a PR is opened.
   • Specify the conditions under which the comment should be posted, such as based on the author, the files modified, or the labels assigned.

3. Define the Comment Action:

   • Set the action to "Leave a comment".
   • Type the message you want to automatically post when the rule's conditions are met.

Here is an example of an automation rule you might set:

• Trigger: When a pull request is opened.
• Condition: If the PR contains changes in the src/ directory.
• Action: Leave a comment saying, "Thank you for your changes in the src directory, we will review them soon!"

Benefits of using Graphite for automation

• Simplicity: Graphite provides a user-friendly interface to define triggers and actions, making it accessible to team members who may not be familiar with GitHub Actions or YAML.
• Customization: You can create complex conditions for when automations should run, which are difficult to manage directly through GitHub Actions without extensive scripting.
• Integration: Graphite works seamlessly with GitHub, providing features like linking back to the rule that triggered an action for transparency and easy adjustments.

By leveraging Graphite Automations in conjunction with GitHub Actions, teams can automate their workflows more effectively and reduce manual overhead, allowing developers to focus on code quality and productivity.
